ML7204-001 Datasheet PDF - OKI Semiconductor VoIP Codec Specs

ML7204-001 - VoIP Codec

Datasheet Summary

Description

The ML7204-001 is a speech CODEC for VoIP.

As a speech CODEC, this LSI allows selection of G.729.A/G711 and supports the PLC (Packet Loss Concealment) function.

Features

Power supply voltage Digital power supply voltage (DVDD0, 1, 2): 3.0 to 3.6 V Analog power supply voltage (AVDD): 3.0 to 3.6 V.
Speech CODEC: G.729.A (8 kbps)/G.711 (64 kbps) µ-law and A-law (supports individual setting for transmission and reception) Supports ITU-T G.711 Appendix 1 compliant PLC (Packet Loss Concealment) function Supports the 2-channel processing function (for 3-way communication).
Built-in FIFO buffer (640 bytes) for transmission/reception data tran.

Datasheet Details

Part number	ML7204-001
Manufacturer	OKI Semiconductor
File Size	792.71 KB
Description	VoIP Codec
Datasheet	ML7204-001 Datasheet
Additional preview pages of the ML7204-001 datasheet.

📁 Similar Datasheet

ML7204-003 - VoIP CODEC (LAPIS)

ML7202-001 - 2-Channel Echo Canceler (LAPIS)

ML720A1S-E22E - LASER DIODES (Roithner)

ML720AA11S - (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES (Mitsubishi Electric)

ML720B8S - InGaAsP Laser Diodes (Mitsubishi Electric)

ML720D8S - InGaAsP Laser Diodes (Mitsubishi Electric)

ML720J11S - (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES (Mitsubishi Electric)

ML720J16S - (ML7xx16) LASER DIODES 2.5Gbps InGaAsP DFB LASER DIODE (Mitsubishi Electric)

ML720J19S - (ML7xx19) LASER DIODES 1310nm InGaAsP FP LASER DIODES (Mitsubishi Electric)

ML720J34S - (ML7xx34) 2.5Gbps InGaAsP DFB LASER DIODE (Mitsubishi Electric)

Full PDF Text Transcription

Click to expand full text

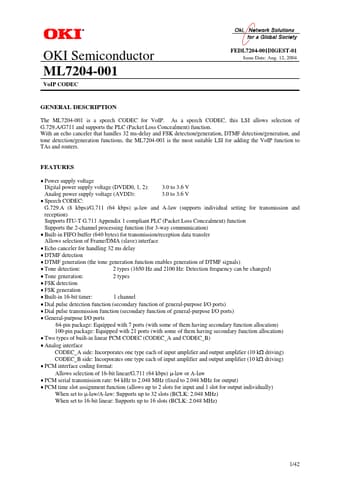

OKI Semiconductor ML7204-001 VoIP CODEC FEDL7204-001DIGEST-01 Issue Date: Aug. 12, 2004 GENERAL DESCRIPTION The ML7204-001 is a speech CODEC for VoIP. As a speech CODEC, this LSI allows selection of G.729.A/G711 and supports the PLC (Packet Loss Concealment) function. With an echo canceler that handles 32 ms-delay and FSK detection/generation, DTMF detection/generation, and tone detection/generation functions, the ML7204-001 is the most suitable LSI for adding the VoIP function to TAs and routers. FEATURES • Power supply voltage Digital power supply voltage (DVDD0, 1, 2): 3.0 to 3.6 V Analog power supply voltage (AVDD): 3.0 to 3.6 V • Speech CODEC: G.729.A (8 kbps)/G.711 (64 kbps) µ-law and A-law (supports individual setting for transmission and reception) Supports ITU-T G.
