ML720A1S-E22E Datasheet (Roithner)

ML720A1S-E22E, LASER DIODES

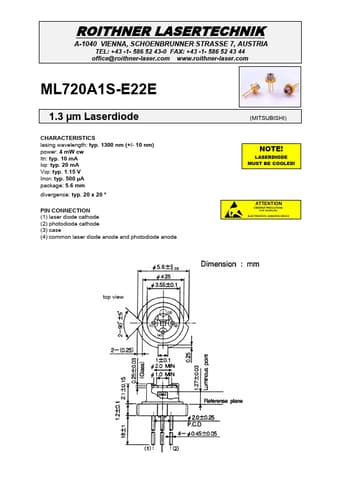

ROITHNER LASERTECHNIK A-1040 VIENNA, SCHOENBRUNNER STRASSE 7, AUSTRIA TEL: +43 -1- 586 52 43-0 FAX: +43 -1- 586 52 43 44 office@roithner-laser.com www.roithner-laser.com ML720A1S-E22E 1.3 µm Laserdiode CHARACTERISTICS lasing wavelength: typ.

1300 nm (+/- 10 nm) power: 4 mW cw Ith: typ.

10 mA Iop: typ.

20 mA Vop: typ.

1.15 V Imon: typ.

500 µA package: 5.6 mm divergence: typ.

20 x 20 ° PIN CONNECTION (1) laser diode cathode (2) photodiode cathode (3) case (4) common laser diode anode and photodio
