MM1206 - Monolithic IC

Product Overview

Mitsumi Electronics

Part number	MM1206
Manufacturer	Mitsumi Electronics
File Size	82.15 KB
Description	Monolithic IC
Datasheet	MM1206 Datasheet
Additional preview pages of the MM1206 datasheet.

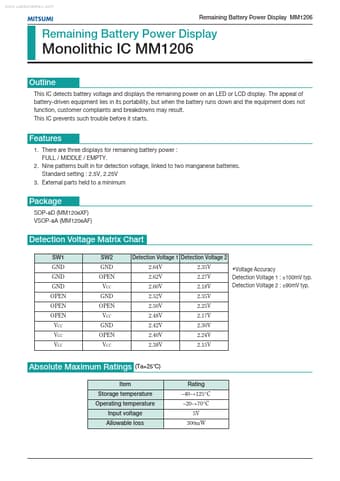

1. There are three displays for remaining battery power : FULL / MIDDLE / EMPTY. 2. Nine patterns built in for detection voltage, linked to two manganese batteries. Standard setting : 2.5V, 2.25V 3. External parts held to a minimum Package SOP-8D (MM1206XF) VSOP-8A (MM1206AF) Detection Voltage Matrix Chart SW1 GND GND GND OPEN OPEN OPEN VCC VCC VCC SW2 GND OPEN VCC GND OPEN VCC GND OPEN VCC Detection Voltage 1 Detection Voltage 2 2.64V 2.62V 2.60V 2.52V 2.50V 2.48V 2.42V 2.40V 2.38V 2.35V 2.27.
