MM1210 Remaining Battery Power Display

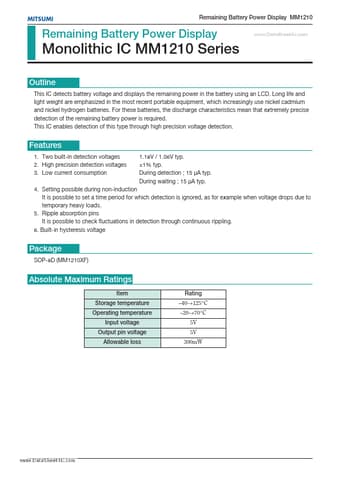

MITSUMI Remaining Battery Power Display MM1210 www.DataSheet4U.com Remaining Battery Power Display Monolithic IC MM1210 Series Outline This IC detects battery voltage and displays the remaining power in the battery using an LCD. Long life and light weight are emphasized in the most recent portable equipment, which increasingly use nickel cadmium and nickel hydrogen batteries. For these batteries, the discharge characteristics mean that extremely precise detection of the remaining battery powe.

MM1210 Features

* 1. Two built-in detection voltages 2. High precision detection voltages 3. Low current consumption 1.18V / 1.06V typ. ±1% typ. During detection ; 15 µA typ. During waiting ; 15 µA typ. 4. Setting possible during non-induction It is possible to set a time period for which detection is ignored, as fo
