MM1216, MM1215 - (MM1215 / MM1216) Low-Saturation Three-Pin Regulators

MM1216 Description

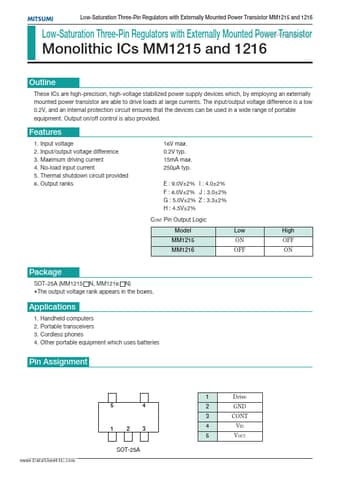

MITSUMI Low-Saturation Three-Pin Regulators with Externally Mounted Power Transistor MM1215 and 1216 Low-Saturation Three-Pin Regulators with Extern.

MM1216 Features

* 1. 2. 3. 4. 5. 6. Input voltage Input/output voltage difference Maximum driving current No-load input current Thermal shutdown circuit provided Output ranks 16V max. 0.2V typ. 15mA max. 250µA typ. E : 9.0V±2% I : 4.0±2% F : 6.0V±2% J : 3.0±2% G : 5.0V±2% Z : 3.3±2% H : 4.5V±2% CONT Pin Output Logic

MM1216 Applications

* 1. 2. 3. 4. Handheld computers Portable transceivers Cordless phones Other portable equipment which uses batteries Pin Assignment 1 5 4 2 3 1 2 3 4 5 SOT-25A Drive GND CONT VIN VOUT MITSUMI Low-Saturation Three-Pin Regulators with Externally Mounted Power Transistor MM1215 and 1216 www. DataShee

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MM1216, MM1215. Please refer to the document for exact specifications by model.
