MS10232NL Datasheet - Mnova

MS10232NL 10/100BASE TRANSFORMER

10/100BASE TRANSFORMER 10/100BASE TRANSFORMER ROHS Compliance Product Meets IEEE 802.3 specification Operating Temperature range: 0℃ TO +70℃. Electrical Specifications @ 25℃ P/N T/R@60KHz 1V DCR OCL@100KHz 0.1V 8mA DC TX&RX all connected pins 1CT : 1CT±5% 1.2Ω MAX MS10232NL IL 0.1～100MHz 30MHz -1.15dB MAX -20dB MIN TX&RX 350µH MIN RL 60MHz 80MHz -14dB MIN -12dB MIN LL@100KHz 0.1V Hi-Pot TX&RX 0.5μH MAX 30MHz -45dB MIN CT 60MHz -40dB MIN PRI TO SEC 1500V AC 1mA 6S 100MHz .

MS10232NL Datasheet (120.93 KB)

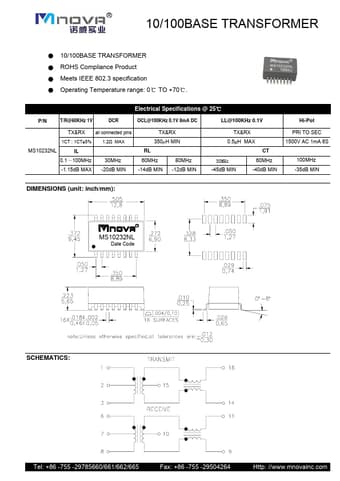

Preview of MS10232NL PDF

Datasheet Details

Part number:

MS10232NL

Manufacturer:

Mnova

File Size:

120.93 KB

Description:

10/100base transformer.
