V55C2128164V Datasheet - Mosel Vitelic Corp

V55C2128164V 128Mbit LOW-POWER SDRAM

BGA Pkg. B Pin Count 54 C=CMOS Family 2.5V Supply Voltage 128Mb(4K Refresh) 4 Banks S=SSTL 60 Pin WBGA PIN CONFIGURATION Top View Pin Configuration for x16 devices: 1 2 3 A B C D E F G H J 7 8 9 VDD DQ1 DQ3 DQ5 VSS DQ15 VSSQ DQ14 DQ13 VDDQ DQ12 DQ11 VSSQ DQ10 DQ9 VDDQ DQ8 NC VSS CKE A9 .

V55C2128164V Features

* 4 banks x 2Mbit x 16 organization

* High speed data transfer rates up to 166 MHz

* Full Synchronous Dynamic RAM, with all signals referenced to clock rising edge

* Single Pulsed RAS Interface

* Data Mask for Read/Write Control

* Four Banks controlled by BA0 & BA1

* Prog

V55C2128164V_MoselVitelicCorp.pdf

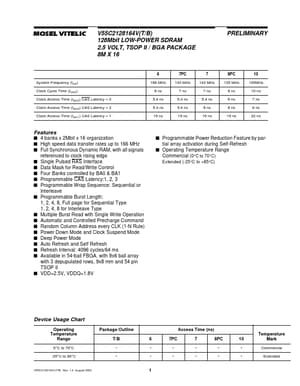

Preview of V55C2128164V PDF
V55C2128164V Datasheet Preview Page 2 V55C2128164V Datasheet Preview Page 3

Datasheet Details

Part number:

V55C2128164V

Manufacturer:

Mosel Vitelic Corp

File Size:

591.51 KB

Description:

128mbit low-power sdram.
