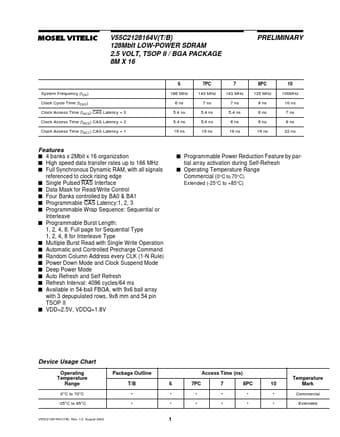

V55C2128164VB - 128Mbit LOW-POWER SDRAM
BGA Pkg.
B Pin Count 54 C=CMOS Family 2.5V Supply Voltage 128Mb(4K Refresh) 4 Banks S=SSTL 60 Pin WBGA PIN CONFIGURATION Top View Pin Configuration for x16 devices: 1 2 3 A B C D E F G H J 7 8 9 VDD DQ1 DQ3 DQ5 VSS DQ15 VSSQ DQ14 DQ13 VDDQ DQ12 DQ11 VSSQ DQ10 DQ9 VDDQ DQ8 NC VSS CKE A9
V55C2128164VB Features
* 4 banks x 2Mbit x 16 organization
* High speed data transfer rates up to 166 MHz
* Full Synchronous Dynamic RAM, with all signals referenced to clock rising edge
* Single Pulsed RAS Interface
* Data Mask for Read/Write Control
* Four Banks controlled by BA0 & BA1
* Prog
