11H2A3404 2 Phase Hybrid Stepper Motor

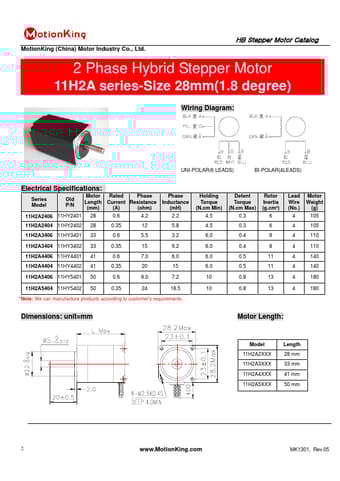

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 11H2A series-Size 28mm(1.8 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Old P/N Motor Length (mm) 11H2A2406 11HY2401 28 Rated Phase Current Resistance (A) (ohm) 0.6 4.2 Phase Inductance (mH) 2.2 11H2A2404 11HY2402 28 0.35 12 5.8 11H2A3406 11HY3401 33 0.6 5.5 3.2 Holding Torque (N.cm Min) 4.5 4.5 6.0 Detent Torque (N.cm .

11H2A2406-MotionKing.pdf

11H2A3404 Datasheet Preview — This datasheet PDF includes multiple part numbers: 11H2A3404, 11H2A2406. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

11H2A3404, 11H2A2406

Manufacturer:

MotionKing

File Size:

64.26 KB

Description:

2 phase hybrid stepper motor.

Note:

This datasheet PDF includes multiple part numbers: 11H2A3404, 11H2A2406.
Please refer to the document for exact specifications by model.
