23H2B5420 2 Phase Hybrid Stepper Motor

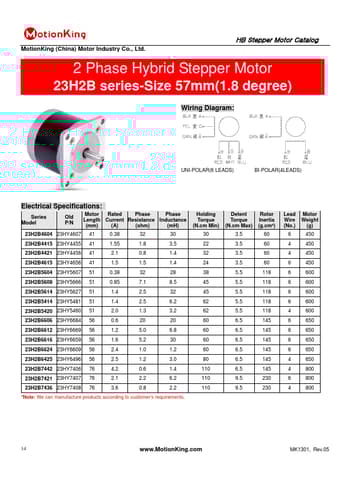

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 23H2B series-Size 57mm(1.8 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Old P/N Motor Rated Phase Phase Length Current Resistance Inductance (mm) (A) (ohm) (mH) 23H2B4604 23HY4607 41 0.38 32 30 Holding Torque (N.cm Min) 30 Detent Torque (N.cm Max) 3.5 Rotor Inertia (g.cm²) 60 23H2B4415 23HY4455 41 1.55 1.8 3.5 22 3.5 6.

23H2B4604-MotionKing.pdf

23H2B5420 Datasheet Preview — This datasheet PDF includes multiple part numbers: 23H2B5420, 23H2B4604. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

23H2B5420, 23H2B4604

Manufacturer:

MotionKing

File Size:

82.27 KB

Description:

2 phase hybrid stepper motor.

Note:

This datasheet PDF includes multiple part numbers: 23H2B5420, 23H2B4604.
Please refer to the document for exact specifications by model.
