23H2M0610 Datasheet (MotionKing) - 2 Phase Hybrid Stepper Motor

23H2M0610, 2 Phase Hybrid Stepper Motor

MotionKing (China) Motor Industry Co., Ltd.

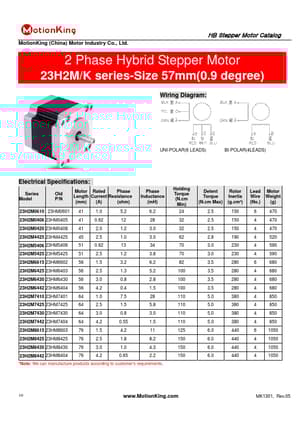

HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 23H2M/K series-Size 57mm(0.9 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Old P/N Motor Rated Phase Length Current Resistance (mm) (A) (ohm) Phase Inductance (mH) 23H2M0610 23HM0601 41 1.0 5.2 6.2 23H2M0406 23HM0405 41 0.62 12 28 23H2M0420 23HM0408 41 2.0 1.2 3.0 23H2M4425 23HM4425 45 2.5 1.0 3.0 23H2M5406 23HM5406 5
