Quad d flip-flop.

74AC175, QUAD D FLIP-FLOP

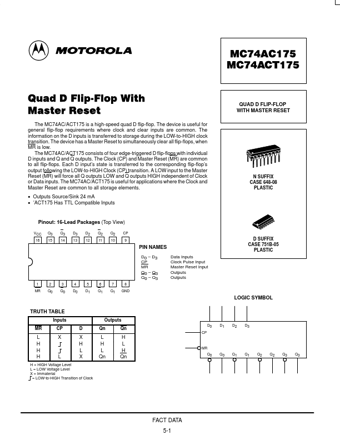

MC74AC175 MC74ACT175 Quad D FlipĆFlop With Master Reset The MC74AC/ACT175 is a high-speed quad D flip-flop.

The device is useful for general flip-flop requirements where clock and clear inputs are common.

The information on the D inputs is transferred to storage during the LOW-to-HIGH clock transition.

The device has a Master Reset to simultaneously clear all flip-flops, when MR is low.

The MC74AC/ACT175 consists of four edge-triggered D flip-flops with individual D inputs and Q and Q outputs.

T

74AC175 Features

* does Motorola assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters can and do vary in diffe
