BDX33B Datasheet - Motorola Inc

BDX33B Darlington Complementary Silicon Power Transistors

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BDX33B/D Darlington Complementary Silicon Power Transistors . . . designed for general purpose and low speed switching applications. High DC Current Gain hFE = 2500 (typ.) at IC = 4.0 Collector Emitter Sustaining Voltage at 100 mAdc VCEO(sus) = 80 Vdc (min.) BDX33B, 34B VCEO(sus) = 100 Vdc (min.) BDX33C, 34C Low Collector Emitter Saturation Voltage VCE(sat) .

BDX33B_MotorolaInc.pdf

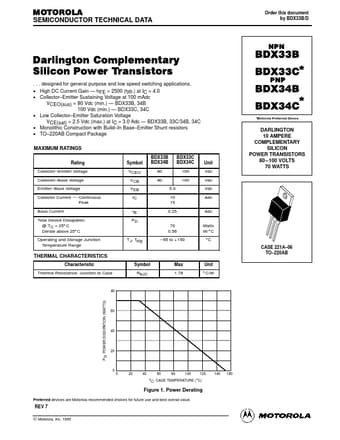

Preview of BDX33B PDF
BDX33B Datasheet Preview Page 2 BDX33B Datasheet Preview Page 3

Datasheet Details

Part number:

BDX33B

Manufacturer:

Motorola Inc

File Size:

135.50 KB

Description:

Darlington complementary silicon power transistors.
