BDX34B - COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS

BDX34B Description

® BDX33B BDX33C BDX34B BDX34C COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS .
The BDX33B and BDX33C are silicon Epitaxial-Base NPN power transistors in monolithic Darlington configuration mounted in Jedec TO-220 plastic package.

BDX34B Applications

* The complementary PNP types are BDX34B and BDX34C respectively. 1 2 3 TO-220 INTERNAL SCHEMATIC DIAGRAM R1 Typ. = 10 KΩ R2 Typ. = 150 Ω ABSOLUTE MAXIMUM RATINGS Symbol Parameter NPN PNP V CBO V CEO IC ICM IB P tot Ts tg Tj Collector-Base Voltage (IE = 0) Collector-Emitter Voltage (IB = 0) Col

📥 Download Datasheet

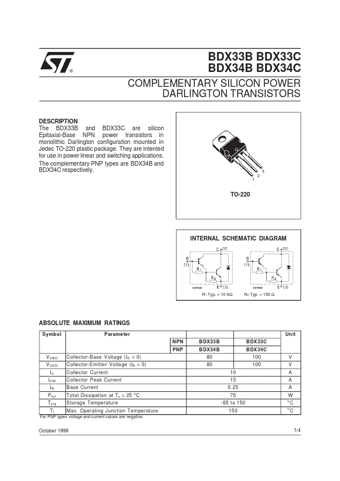

Preview of BDX34B PDF
