BDX54B Datasheet - STMicroelectronics

COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS

BDX54B General Description

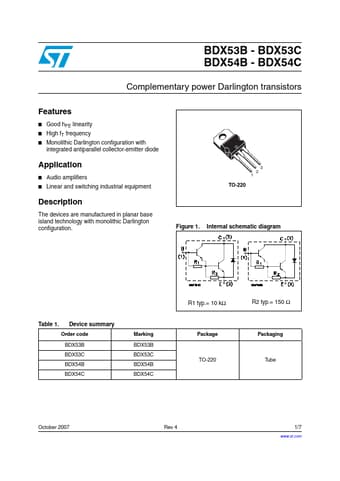

The devices are manufactured in planar base island technology with monolithic Darlington configuration. 3 2 1 TO-220 Figure 1. Internal schematic diagram Table 1. Device summary Order code BDX53B BDX53C BDX54B BDX54C Marking BDX53B BDX53C BDX54B BDX54C R1 typ.= 10 kΩ R2 typ.= 150 Ω Package TO-.

BDX54B Datasheet (70.98 KB)

Preview of BDX54B PDF

Datasheet Details

Part number:

BDX54B

Manufacturer:

STMicroelectronics ↗

File Size:

70.98 KB

Description:

Complementary silicon power darlington transistors.
