BDX33C - COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS

Datasheet Summary

Description

The BDX33B and BDX33C are silicon Epitaxial-Base NPN power transistors in monolithic Darlington configuration mounted in Jedec TO-220 plastic package.

They are intented for use in power linear and switching applications.

The complementary PNP types are BDX34B and BDX34C respectively.

📥 Download Datasheet

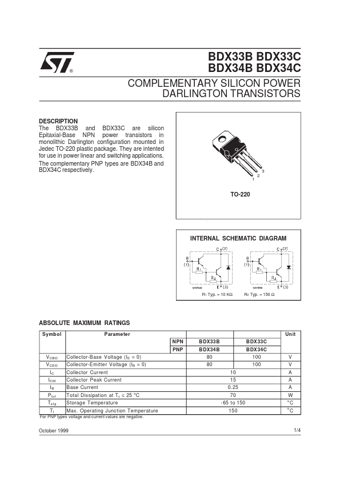

Datasheet preview – BDX33C
