P2N2222A Amplifier Transistors

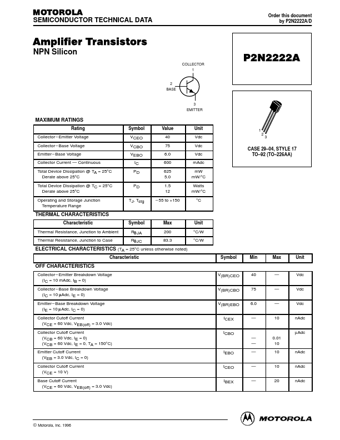

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by P2N2222A/D Amplifier Transistors NPN Silicon COLLECTOR 1 2 BASE 3 EMITTER P2N2222A MAXIMUM RATINGS Rating Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous Total Device Dissipation @ TA = 25°C Derate above 25°C Total Device Dissipation @ TC = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol VCEO VCBO VEBO IC PD PD.
