P2N2222A NPN Silicon Amplifier Transistors

onsemi

Description

P2N2222A Amplifier Transistors NPN Silicon .

📥 Download Datasheet

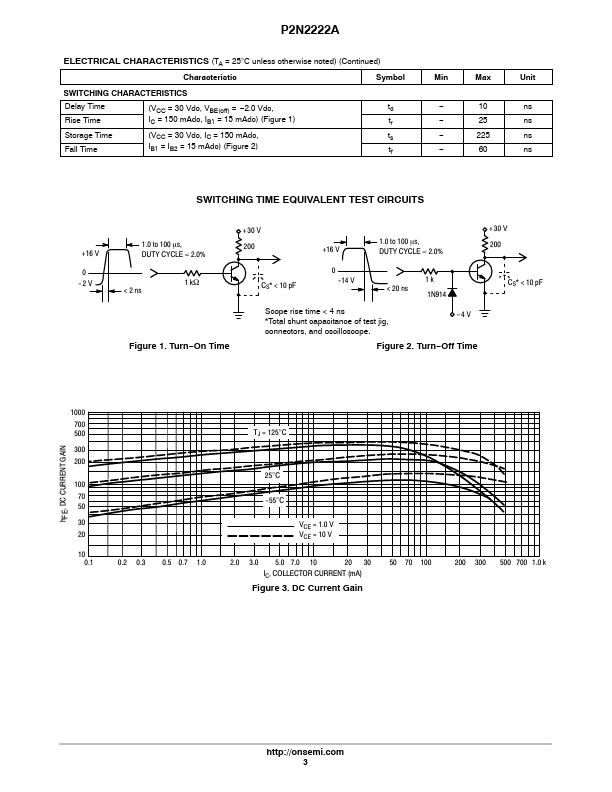

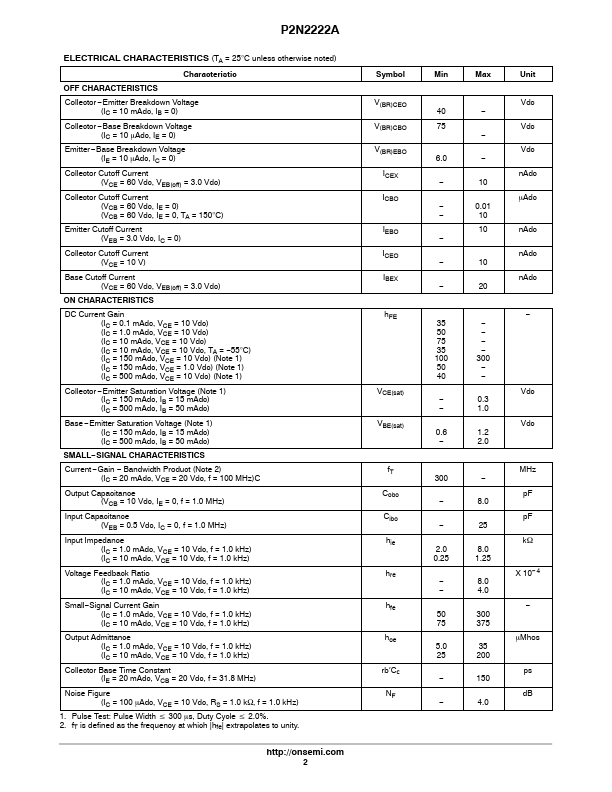

P2N2222A Datasheet Preview — Preview of P2N2222A PDF

Datasheet Specifications

Part number: P2N2222A
Manufacturer: onsemi
File Size: 194.65 KB
Datasheet: P2N2222A-onsemi.pdf
Description: NPN Silicon Amplifier Transistors

Features

* These are Pb
* Free Devices
* MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Characteristic Symbol Value Collector
* Emitter Voltage VCEO 40 Collector
* Base Voltage VCBO 75 Emitter
* Base Voltage VEBO 6.0 Collector Current
* Continuous
