P2N2907A, P2N2907 Datasheet - CDIL

P2N2907A PNP Silicon Transistor

SYMBOL P2N2907 Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage VCEO VCBO VEBO 40 60 5 Collector Current Total Power Dissipation @ Ta=25ºC Derate above 25ºC ICM PD 600 625 5 Total Power Dissipation @ TC=25ºC Derate above 25ºC PD 1.5 12 Operating and Storage Junction .

P2N2907-CDIL.pdf

This datasheet PDF includes multiple part numbers: P2N2907A, P2N2907. Please refer to the document for exact specifications by model.

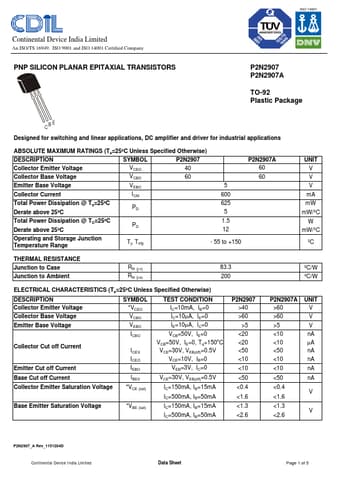

P2N2907A Datasheet Preview Page 2 P2N2907A Datasheet Preview Page 3

Datasheet Details

Part number:

P2N2907A, P2N2907

Manufacturer:

CDIL

File Size:

88.07 KB

Description:

Pnp silicon transistor.

Note:

This datasheet PDF includes multiple part numbers: P2N2907A, P2N2907.
Please refer to the document for exact specifications by model.
