2N1415, 2N1413 Datasheet - Motorola

2N1415 PNP Transistor

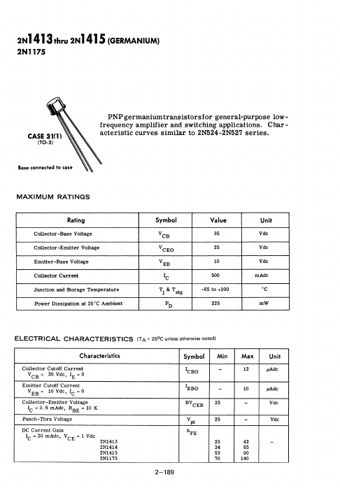

2N1413thru 2N1415 (GERMANIUM) 2Nl175 CASE 31(1) (TO-5) Base connected to case PNPgermaniumtransistorsfor general-purpose lowfrequency amplifier and switching applications. Characteristic curves similar to 2N524-2N527 series. MAXIMUM RATINGS Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Junction and Storage Temperature Power Dissipation at 25°C Ambient Symbol VCB VCEO VEB IC Tj & Tstg Po Value 35 25 10 500 -65 to +100 225 Unit Vdc Vdc Vdc mAd.

2N1413-Motorola.pdf

2N1415 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N1415, 2N1413. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N1415, 2N1413

Manufacturer:

Motorola

File Size:

90.17 KB

Description:

Pnp transistor.

Note:

This datasheet PDF includes multiple part numbers: 2N1415, 2N1413.
Please refer to the document for exact specifications by model.
