2N1533, 2N1529 PNP Transistor

Motorola

Description

2N 1529 thru 2N 1538 (GERMANIUM) 2N 1529A thru 2N 1532A, 2N 1534A thru 2N 1537A PNP germanium power transistors for switching and amplifier applicatio.

📥 Download Datasheet

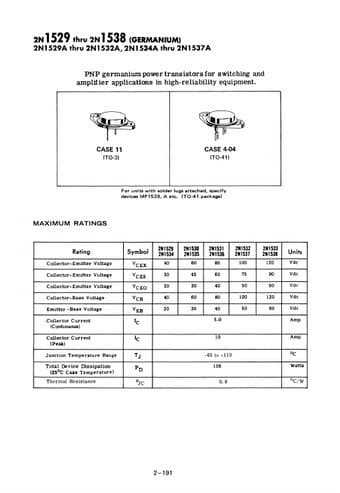

2N1533 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N1533, 2N1529. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 2N1533, 2N1529
Manufacturer: Motorola
File Size: 225.03 KB
Datasheet: 2N1529-Motorola.pdf
Description: PNP Transistor
Note: This datasheet PDF includes multiple part numbers: 2N1533, 2N1529.
Please refer to the document for exact specifications by model.

Applications

* in high-reliability equipment. CASE 11 (TO-3) CASE 4-04 (TO-41) For units with solder lugs attached, specify devices MP1529, A etc. (TO-41 package) MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector- Emitter Voltage Collector-Emitter Voltage Collector-Base Voltage Emitter -Base Voltage
