2N1845, 2N1842 Datasheet - Motorola

2N1845 silicon controlled rectifiers

2N1842 thru 2N 1850 (SILICON) CASE~ Industrial-type, silicon controlled rectifiers in a stud package with current handling capability to 16 amperes at junction temperatures to lOOOC. MCR equivalents available in TO-48 package - i.e. - 2N1842 available in T048 package as MCR1842. MAXIMUM RATINGS

2N1842-Motorola.pdf

This datasheet PDF includes multiple part numbers: 2N1845, 2N1842. Please refer to the document for exact specifications by model.

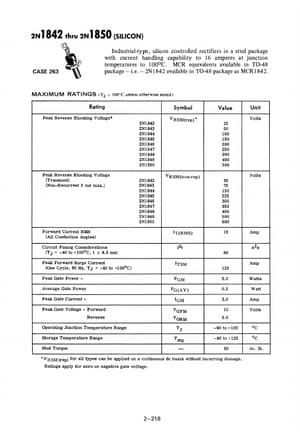

2N1845 Datasheet Preview Page 2 2N1845 Datasheet Preview Page 3

Datasheet Details

Part number:

2N1845, 2N1842

Manufacturer:

Motorola

File Size:

159.12 KB

Description:

Silicon controlled rectifiers.

Note:

This datasheet PDF includes multiple part numbers: 2N1845, 2N1842.
Please refer to the document for exact specifications by model.
