2N1843A, 2N1842A Datasheet - Motorola

2N1843A silicon controlled rectifiers

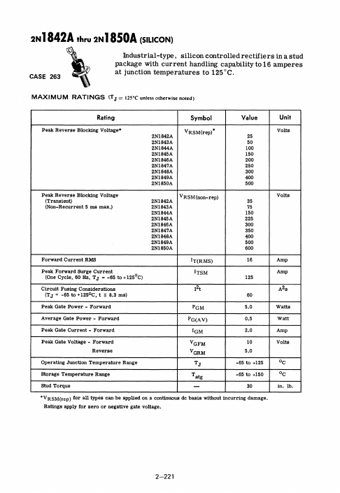

2N1842A thru 2N1850A.(sILiCON) Industrial-type, silicon controlled rectifiers in a stud package with current handling capability to 16 amperes at junction temperatures to 125°e. = MAXIMUM RATINGS (,TJ 12S'C unless otherwise noted) Rating Symbol Value Unit Peak Reverse Blocking Voltage. 2N1842A 2N1843A 2N1844A 2N1845A 2N1846A 2N1847A 2N1848A 2N1849A 2N1850A VRSM(rep) Volts 25 50 100 150 200 250 300 400 500 Peak Reverse Blocking Voltage (Transient) (Non-Recurrent 5 ms max.) 2N1842A.

2N1842A-Motorola.pdf

This datasheet PDF includes multiple part numbers: 2N1843A, 2N1842A. Please refer to the document for exact specifications by model.
2N1843A Datasheet Preview Page 2 2N1843A Datasheet Preview Page 3

Datasheet Details

Part number:

2N1843A, 2N1842A

Manufacturer:

Motorola

File Size:

157.31 KB

Description:

Silicon controlled rectifiers.

Note:

This datasheet PDF includes multiple part numbers: 2N1843A, 2N1842A.
Please refer to the document for exact specifications by model.
