2N2224 - NPN Transistor

2N2224 Description

2N2224 (SILICON) NPN silicon annular transistor designed primarily for high speed switching applications.CASE 31 (TO *S) Collector connected to .

2N2224 Applications

* CASE 31 (TO
* S) Collector connected to case MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current-Continuous Total Device Dissipation @ TA = 25° C Derate above 25°C Total Device Dissipation @ T C = 25° C Derate above 25° C Operating Junct

📥 Download Datasheet

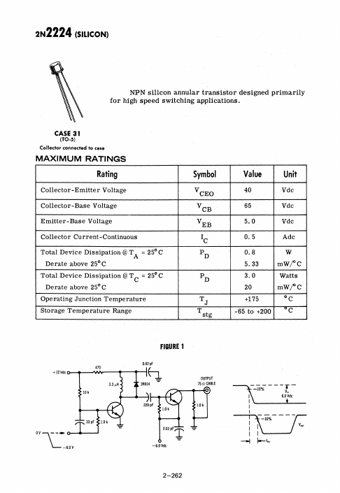

Preview of 2N2224 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N2224
Manufacturer
Motorola
File Size
89.34 KB
Datasheet
2N2224-Motorola.pdf
Description
NPN Transistor
