2N2330 - NPN Transistor

2N2330 Description

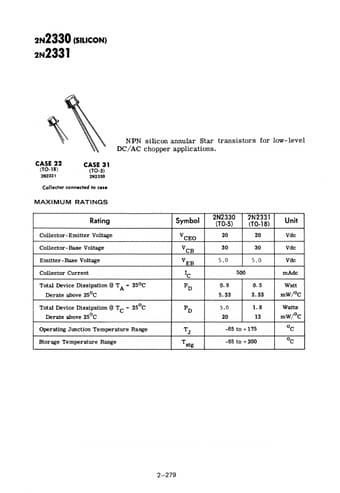

2N2330 (SILICON) 2N2331 NPN silicon annular Star transistors for low-level DclAC chopper applications.CASE 22 (TO-lS) 2N2331 CASE 31 (TO-S) 2N2330.

2N2330 Applications

* CASE 22 (TO-lS) 2N2331 CASE 31 (TO-S) 2N2330 Collector connected to cue MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Total Device Dissipation @ TA = 25°C Derate above 25°C Total Device Dissipation @ TC = 25°C Derate above 250 C
