2N3026, 2N3021 Datasheet - Motorola

2N3026 PNP silicon power transistors

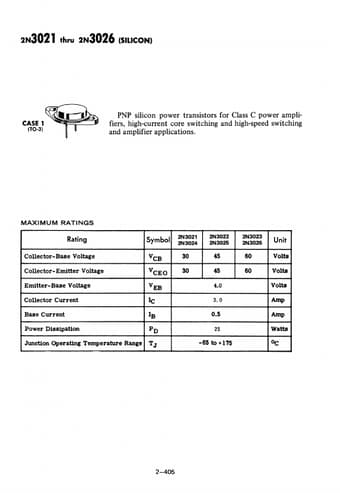

2N3021 thru 2N3026 (SILICON) CASE1~ (TO 3) ~ PNP silicon power transistors for Class C power amplifiers, high-current core switching and high-speed switching and amplifier applications. MAXIMUM RATINGS Rating Collector-Base Voltage Collector-Emitter Voltage Symbol 2N3021 2N3024 VCB 30 VCEO 30 2N3022 2N3025 45 45 Emitter-Base Voltage VEB 4.0 Collector Current Base Current Ie 3.0 IB 0.5 Power Dissipation PD Junction Operating Temperature Range TJ 25 -65 to +175 2N3023 2.

2N3021-Motorola.pdf

This datasheet PDF includes multiple part numbers: 2N3026, 2N3021. Please refer to the document for exact specifications by model.
2N3026 Datasheet Preview Page 2 2N3026 Datasheet Preview Page 3

Datasheet Details

Part number:

2N3026, 2N3021

Manufacturer:

Motorola

File Size:

298.50 KB

Description:

Pnp silicon power transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N3026, 2N3021.
Please refer to the document for exact specifications by model.
