2N3302 - GENERAL PURPOSE TRANSISTOR

This page provides the datasheet information for the 2N3302, a member of the 2N3299 GENERAL PURPOSE TRANSISTOR family.

Motorola

Datasheet Details

Part number	2N3302
Manufacturer	Motorola
File Size	33.67 KB
Description	GENERAL PURPOSE TRANSISTOR
Datasheet	2N3302 Datasheet

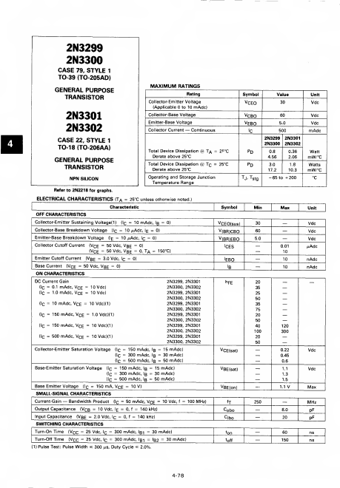

Additional preview pages of the 2N3302 datasheet.

📁 Similar Datasheet

2N3302 - Transistor (New Jersey Semi-Conductor)
2N3302 - Small Signal Transistors (Central Semiconductor)
2N3300 - Small Signal Transistors (Central)
2N3300 - Bipolar NPN Device (Seme LAB)
2N3300 - Transistor (New Jersey Semi-Conductor)
2N3301 - Small Signal Transistors (Central Semiconductor)
2N3307 - Transistor (New Jersey Semi-Conductor)
2N3308 - Transistor (New Jersey Semi-Conductor)
2N3326 - Small Signal Transistors (Central)
2N3329 - p-channel JFET (Siliconix)

Other Datasheets by Motorola

2N3300 - GENERAL PURPOSE TRANSISTOR
2N3301 - GENERAL PURPOSE TRANSISTOR
2N3303 - NPN silicon annular transistor
2N3304 - PNP silicon annular transistor
2N3307 - GENERAL PURPOSE TRANSISTOR
2N3308 - GENERAL PURPOSE TRANSISTOR
2N331 - PNP Transistor
2N3311 - PNP germanium power transistors

Full PDF Text Transcription

Click to expand full text

2N3299 2N3300 CASE 79, STYLE 1 TO-39 (TO-205AD) GENERAL PURPOSE TRANSISTOR 2N3301 2N3302 MAXIMUM RATINGS Rating Collector-Emitter Voltage (Applicable to 10 mAdc) Collector-Base Voltage Emitter-Base Voltage —Collector Current Continuous Symbol VCEO VCBO VEBO ic Value 30 60 5.0 500 CASE 22, STYLE 1 TO-18 (TO-206AA) GENERAL PURPOSE TRANSISTOR NPN SILICON @Total Device Dissipation TA = 2F°C Derate above 25°C @Total Device Dissipation Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range PD Pd TJ- Tstg 2N3299 2N3301 2N3300 2N3302 0.8 4.56 0.36 2.06 3.0 17.2 1.8 10.3 - 65 to + 200 Refer to 2N2218 for graphs. ELECTRICAL CHARACTERISTICS (TA 25°C unless otherwise noted.
