2N3308, 2N3307 Datasheet - Motorola

2N3308 GENERAL PURPOSE TRANSISTOR

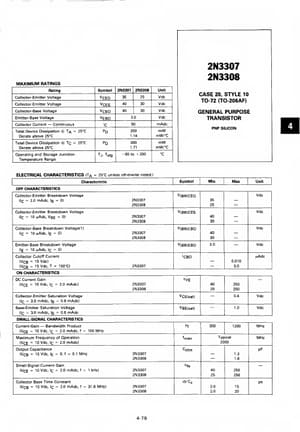

MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous @Total Device Dissipation Ta = 25°C Derate above 25°C @Total Device Dissipation Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol 2N3307 2N3308 vCEO V CES VCBO 35 40 40 25 30 30 VEBO 'C PD 3.0 50 200 1.14 pd TJ. Tstg 300 1.71 - 65 to + 200 Unit Vdc Vdc Vdc Vdc mAdc mW mW/°C mW mW/°C °C 2N3307 2N330.

2N3307-Motorola.pdf

2N3308 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N3308, 2N3307. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N3308, 2N3307

Manufacturer:

Motorola

File Size:

54.71 KB

Description:

General purpose transistor.

Note:

This datasheet PDF includes multiple part numbers: 2N3308, 2N3307.
Please refer to the document for exact specifications by model.
