2N350A Datasheet - Motorola

2N350A PNP Transistor

2N350A (GERMANIUM) 2N351A 2N376A CASE1~ ~ (TO-3)I MAXIMUM RATINGS PNP germanium power transistors for economical power switching applications and for power amplifiers requiring up to 4 watts of output power at relatively low distortion. Rating Collector-Base Voltage Symbol Value Unit VCB 50 Vdc Collector-Emitter Voltage VCES 40 Vdc Collector Dissipation Po 90 Watts at 25'C mounting base temperature Collector Junction Temperature Thermal Resistance (Junction to Case) TJ -65 t.

2N350A Datasheet (191.47 KB)

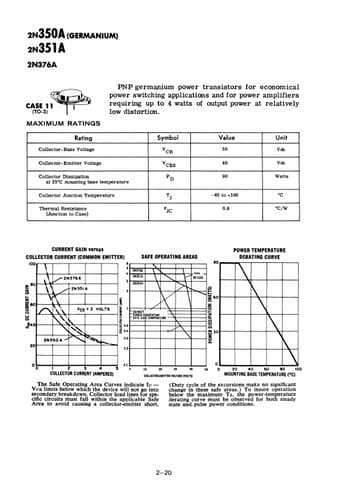

Preview of 2N350A PDF
2N350A Datasheet Preview Page 2 2N350A Datasheet Preview Page 3

Datasheet Details

Part number:

2N350A

Manufacturer:

Motorola

File Size:

191.47 KB

Description:

Pnp transistor.
