2N351A, 2N350A Datasheet - Motorola

2N351A PNP Transistor

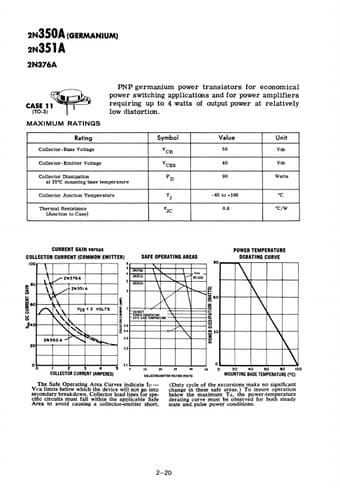

2N350A (GERMANIUM) 2N351A 2N376A CASE1~ ~ (TO-3)I MAXIMUM RATINGS PNP germanium power transistors for economical power switching applications and for power amplifiers requiring up to 4 watts of output power at relatively low distortion. Rating Collector-Base Voltage Symbol Value Unit VCB 50 Vdc Collector-Emitter Voltage VCES 40 Vdc Collector Dissipation Po 90 Watts at 25'C mounting base temperature Collector Junction Temperature Thermal Resistance (Junction to Case) TJ -65 t.

2N350A-Motorola.pdf

This datasheet PDF includes multiple part numbers: 2N351A, 2N350A. Please refer to the document for exact specifications by model.
2N351A Datasheet Preview Page 2 2N351A Datasheet Preview Page 3

Datasheet Details

Part number:

2N351A, 2N350A

Manufacturer:

Motorola

File Size:

191.47 KB

Description:

Pnp transistor.

Note:

This datasheet PDF includes multiple part numbers: 2N351A, 2N350A.
Please refer to the document for exact specifications by model.
