54LS160A Datasheet, Counters, Motorola

54LS160A Features

• Counters 25 32 20 35 18 35 13 24 18 27 9.0 14 9.0 14 20 28 Unit MHz ns ns ns ns Test Conditions VCC = 5.0 V CL = 15 pF FAST AND LS TTL DATA 5-281 SN54/74LS160A
• SN54/74LS161A SN54/7

PDF File Details

Part number:

54LS160A

Manufacturer:

Motorola

File Size:

157.30kb

Download:

📄 Datasheet

Description:

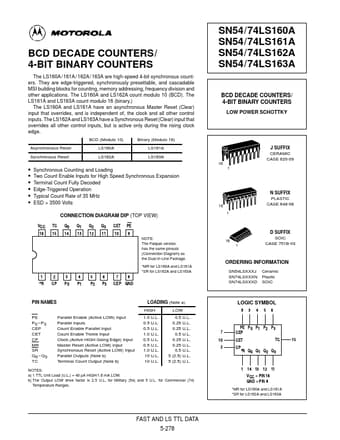

Bcd decade counters / 4-bit binary counters. The LS160A / 161A / 162A / 163A are 4-bit synchronous counters with a synchronous Parallel Enable (Load) feature. The counters consis

54LS160A Application

• Applications The LS160A and LS162A count modulo 10 (BCD). The LS161A and LS163A count modulo 16 (binary.) The LS160A and LS161A have an asynchronou
