74LS74A DUAL D-TYPE POSITIVE EDGE-TRIGGERED FLIP-FLOP

📥 Download Datasheet  Datasheet Preview Page 1

Description

DUAL D-TYPE POSITIVE EDGE-TRIGGERED FLIP-FLOP The SN54 / 74LS74A dual edge-triggered flip-flop utilizes Schottky TTL circuitry to produce high speed D.

📥 Download Datasheet

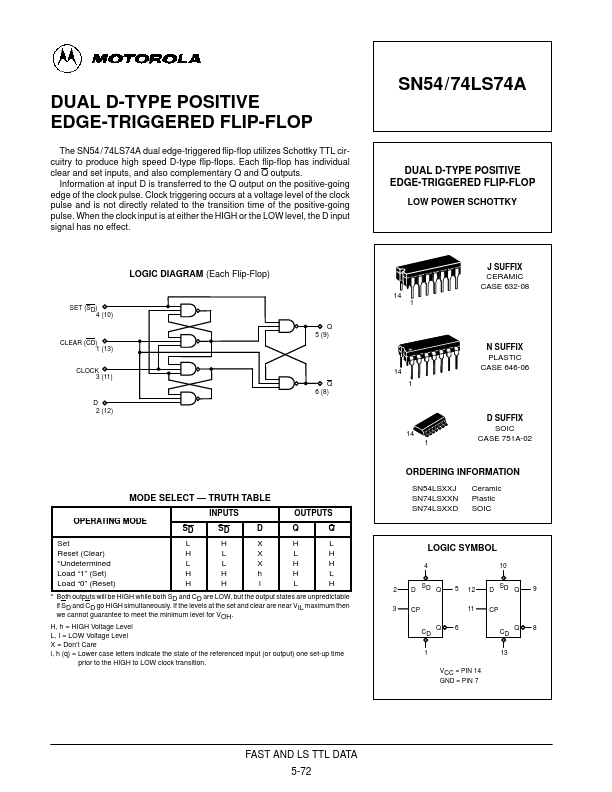

Preview of 74LS74A PDF

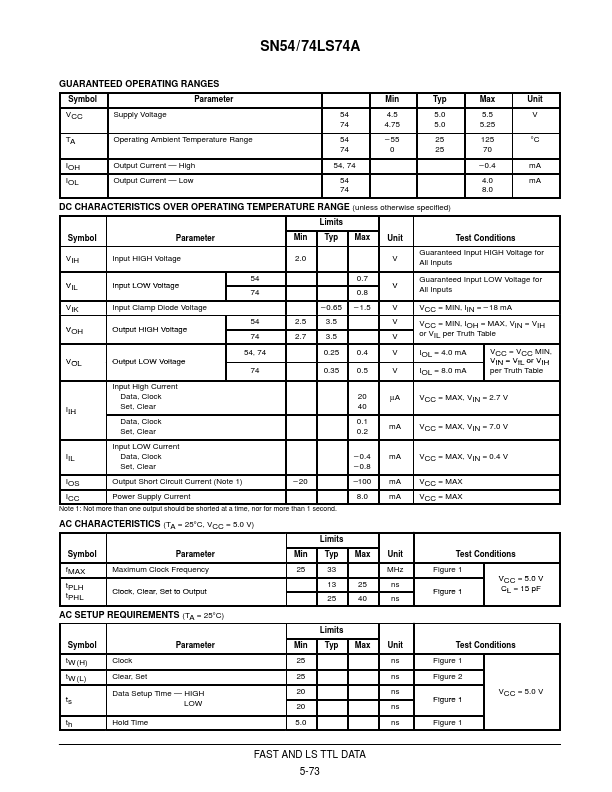

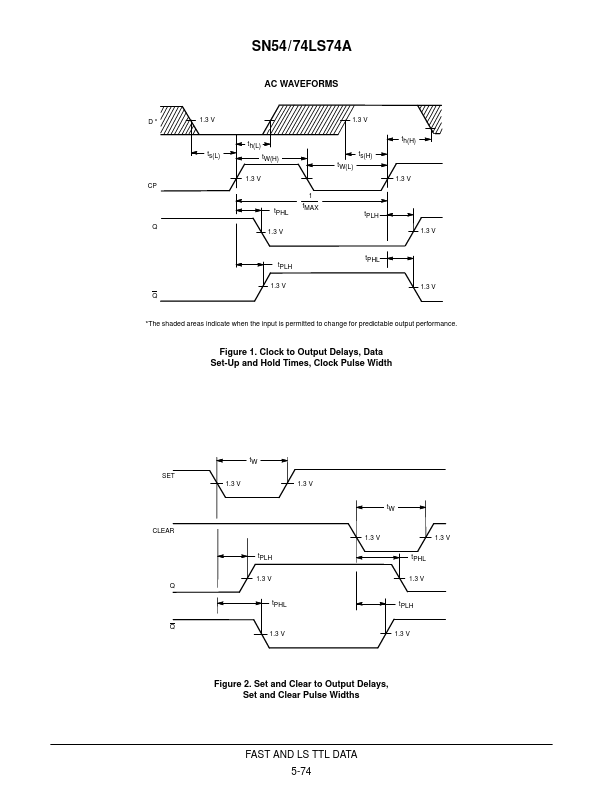

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
74LS74A
Manufacturer
Motorola
File Size
73.22 KB
Datasheet
74LS74A-Motorola.pdf
Description
DUAL D-TYPE POSITIVE EDGE-TRIGGERED FLIP-FLOP
