MC10ELT26 - 1:2 Fanout Differential PECL to TTL Translator

Motorola

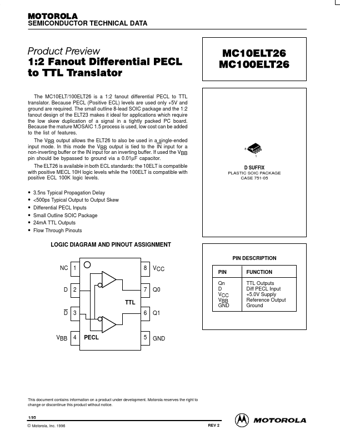

MC10ELT26 Datasheet Preview — Preview of MC10ELT26 PDF

Datasheet Details

Part number	MC10ELT26
Manufacturer	Motorola
File Size	74.63 KB
Description	1:2 Fanout Differential PECL to TTL Translator
Datasheet	MC10ELT26_MotorolaInc.pdf

MC10ELT26 Product details

Description

NC 1 8 VCC PIN Qn D VCC VBB GND FUNCTION TTL Outputs Diff PECL Input +5.0V Supply Reference Output Ground D 2 TTL 7 Q0 D 3 6 Q1 VBB 4 PECL 5 GND This document contains information on a product under development.Motorola reserves the right to change or discontinue this product without notice.1/95 © Motorola, Inc.1996 3 1 REV 2 MC10ELT26 MC100ELT26 OUTLINE DIMENSIONS D SUFFIX PLASTIC SOIC PACKAGE CASE 751 05 ISSUE P A B M 8 5 X 45 _ J 1

Features

The VBB output allows the ELT26 to also be used in a single-ended input mode. In this mode the VBB output is tied to the IN input for a non-inverting buffer or the IN input for an inverting buffer. If used the VBB pin should be bypassed to ground via a 0.01µF capacitor. The ELT26 is available in both ECL standards: the 10ELT is compatible with positive MECL 10H logic levels while the 100ELT is compatible with positive ECL 100K logic levels. MC10ELT26 MC100ELT26 8 1 D SUFFIX.
