MC10ELT25 Datasheet - ON Semiconductor

Differential ECL to TTL Translator

MC10ELT25 Features

* 2.6 ns Typical Propagation Delay

* 100 MHz FMAX CLK

* 24 mA TTL Outputs

* Flow Through Pinouts

* Operating Range: VCC = 4.5 V to 5.5 V with GND = 0 V; VEE

MC10ELT25 General Description

The MC10ELT/100ELT25 is a differential ECL to TTL translator. Because ECL levels are used, a +5 V, *5.2 V (or *4.5 V) and ground are required. The small outline 8-lead package and the single gate of the ELT25 makes it ideal for those applications where space, performance and low powe.

MC10ELT25 Datasheet (91.28 KB)

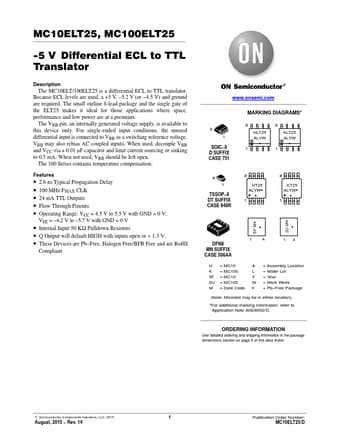

Preview of MC10ELT25 PDF

Datasheet Details

Part number:

MC10ELT25

Manufacturer:

ON Semiconductor ↗

File Size:

91.28 KB

Description:

Differential ecl to ttl translator.
