MC12022B, MC12022A Datasheet - Motorola

MC12022B (MC12022A / MC12022B) Dual Modulus Prescaler

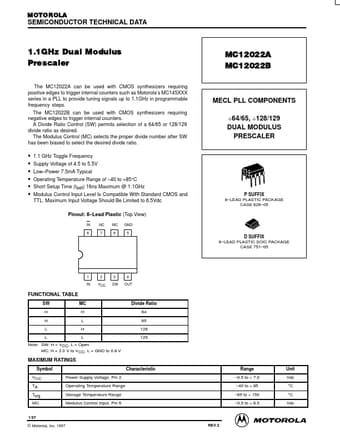

www.DataSheet4U.com MOTOROLA SEMICONDUCTOR TECHNICAL DATA 1.1GHz Dual Modulus Prescaler MC12022A MC12022B The MC12022A can be used with CMOS synthesizers requiring positive edges to trigger internal counters such as Motorola’s MC145XXX series in a PLL to provide tuning signals up to 1.1GHz in programmable frequency steps. The MC12022B can be used with CMOS synthesizers requiring negative edges to trigger internal counters. A Divide Ratio Control (SW) permits selection of a 64/65 or 128/129 d.

MC12022A_Motorola.pdf

This datasheet PDF includes multiple part numbers: MC12022B, MC12022A. Please refer to the document for exact specifications by model.
MC12022B Datasheet Preview Page 2 MC12022B Datasheet Preview Page 3

Datasheet Details

Part number:

MC12022B, MC12022A

Manufacturer:

Motorola

File Size:

83.97 KB

Description:

(mc12022a / mc12022b) dual modulus prescaler.

Note:

This datasheet PDF includes multiple part numbers: MC12022B, MC12022A.
Please refer to the document for exact specifications by model.
