MC12022LVA, MC12022LVAD Datasheet - Motorola

MC12022LVA - 1.1 GHz Low-Voltage Dual Modulus Prescaler

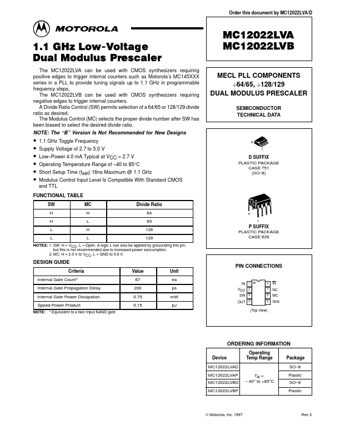

Order this document by MC12022LVA/D 1.1 GHz Low-Voltage Dual Modulus Prescaler The MC12022LVA can be used with CMOS synthesizers requiring positive edges to trigger internal counters such as Motorola’s MC145XXX series in a PLL to provide tuning signals up to 1.1 GHz in programmable frequency steps.

The MC12022LVB can be used with CMOS synthesizers requiring negative edges to trigger internal counters.

A Divide Ratio Control (SW) permits selection of a 64/65 or 128/129 divide ratio as desired.

MC12022LVAD_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: MC12022LVA, MC12022LVAD. Please refer to the document for exact specifications by model.
MC12022LVA Datasheet Preview Page 2 MC12022LVA Datasheet Preview Page 3

Datasheet Details

Part number:

MC12022LVA, MC12022LVAD

Manufacturer:

Motorola

File Size:

87.15 KB

Description:

1.1 ghz low-voltage dual modulus prescaler.

Note:

This datasheet PDF includes multiple part numbers: MC12022LVA, MC12022LVAD.
Please refer to the document for exact specifications by model.
