MC13025, MC13025D Electronically Tuned Radio Front End

MC13025 Description

Order this document by MC13025/D MC13025 Electronically Tuned Radio Front End The MC13025 is the complementary ETR® Electronically Tuned Radio front<.

MC13025 Applications

* Other applications include portable radio “boom boxes”, table radios and component stereo systems.
* Operates Over a Wide Range of Supply Voltages: 6.0 VCC to 10 VCC
* Wideband AGC Voltage to RF Amp for Extended Dynamic Range
* Buffered VCO Output to Frequency Synthesizer

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC13025, MC13025D. Please refer to the document for exact specifications by model.

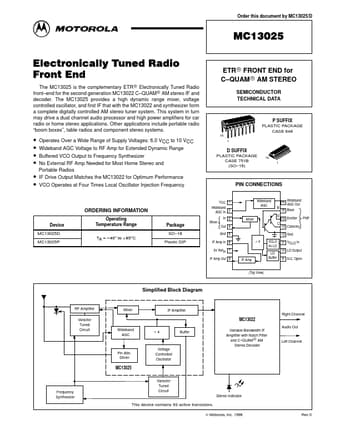

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC13025, MC13025D
Manufacturer
Motorola
File Size
147.13 KB
Datasheet
MC13025D_MotorolaInc.pdf
Description
Electronically Tuned Radio Front End
Note
This datasheet PDF includes multiple part numbers: MC13025, MC13025D.
Please refer to the document for exact specifications by model.
