MC13060 MINI-WATT AUDIO OUTPUT

MC13060 Description

Order this document by MC13060/D Mini-Watt Audio Output This device is a rugged and versatile power amplifier in a remarkable plastic power package..
The MC13060 is a quasi. complementary audio power amplifier, mounted in the SOP 8 (power SOIC package).

MC13060 Applications

* in radio, TV, intercom, and other speaker driving tasks. It requires the usual external components for high frequency stability and for gain adjustment. The output signal voltage and the power supply drain current are very linearly related, as shown in Figure 5. Both are quite constant over wide var

📥 Download Datasheet

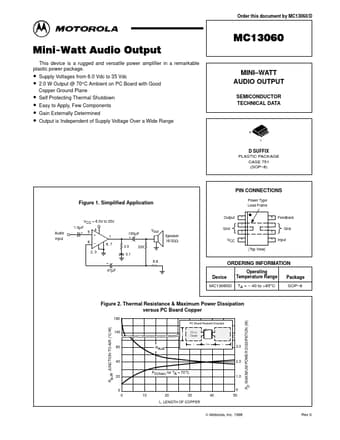

Preview of MC13060 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC13060
Manufacturer
Motorola
File Size
109.26 KB
Datasheet
MC13060_MotorolaInc.pdf
Description
MINI-WATT AUDIO OUTPUT
