MC14007UB Datasheet - Motorola

MC14007UB Dual Complementary Pair Plus Inverter

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Dual Complementary Pair Plus Inverter The MC14007UB multi purpose device consists of three N channel and three P channel enhancement mode devices packaged to provide access to each device. These versatile parts are useful in inverter circuits, pulse shapers, linear amplifiers, high input impedance amplifiers, threshold detectors, transmission gating, and functional gating. Diode Protection on All Inputs .

MC14007UB-Motorola.pdf

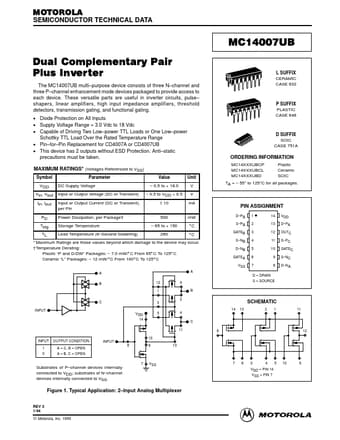

Preview of MC14007UB PDF
MC14007UB Datasheet Preview Page 2 MC14007UB Datasheet Preview Page 3

Datasheet Details

Part number:

MC14007UB

Manufacturer:

Motorola

File Size:

242.27 KB

Description:

Dual complementary pair plus inverter.
