MC14008B - 4-Bit Full Adder

Datasheet Summary

Features

  • Look-Ahead Carry Output.
  • Diode Protection on All Inputs.
  • All Outputs Buffered.
  • Supply Voltage Range = 3.0 Vdc to 18 Vdc.
  • Capable of Driving Two Low-Power TTL Loads or One Low-Power Schottky TTL Load Over the Rated Temperature Range.
  • Pin-for-Pin Replacement for CD4008B.
  • This Device is Pb-Free and is RoHS Compliant.

📥 Download Datasheet

Datasheet preview – MC14008B

Datasheet Details

Part number MC14008B
Manufacturer ON Semiconductor
File Size 181.53 KB
Description 4-Bit Full Adder
Datasheet download datasheet MC14008B Datasheet

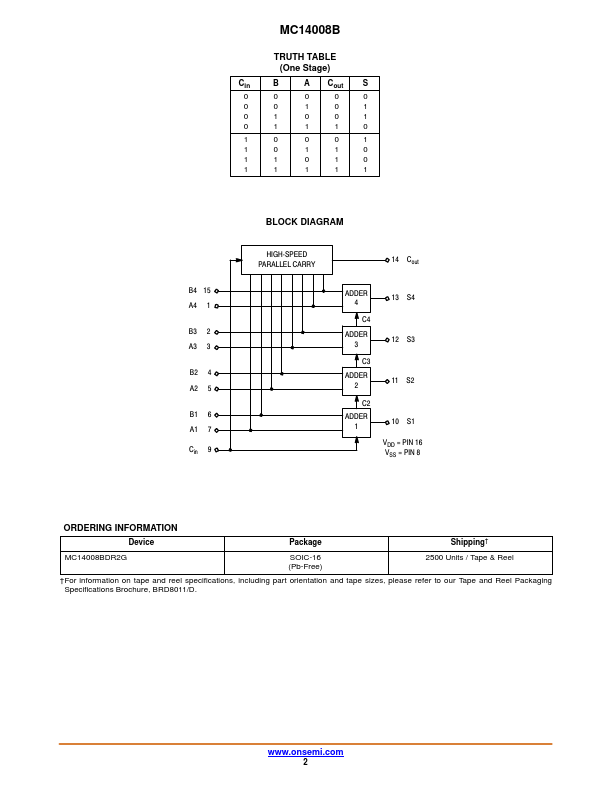

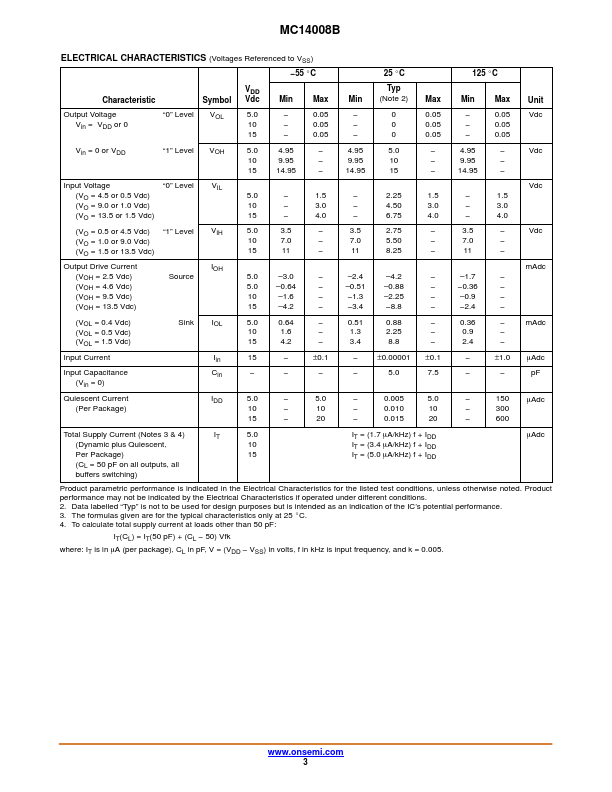

Additional preview pages of the MC14008B datasheet.

📁 Similar Datasheet

  • MC14008B - 4-Bit Full Adder (Motorola)
  • MC1400 - (MC1500 / MC1400) Laser Trimmed Silicon Monolithic Integrated Circuit (Motorola)
  • MC14000UB - Dual 3-Input NOR Gate Plus Inverter (Motorola)
  • MC14001B - B-Suffix Series CMOS Gates (Motorola)
  • MC14001UB - Dual 3-Input NOR Gate Plus Inverter (Motorola)
  • MC14002B - B-Suffix Series CMOS Gates (Motorola)
  • MC14002UB - Dual 3-Input NOR Gate Plus Inverter (Motorola)
  • MC14005N - MC14005N LED (ETC)
  • MC14006B - 18-Bit Static Shift Register (Motorola)
  • MC14007N - MC14005N LED (ETC)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

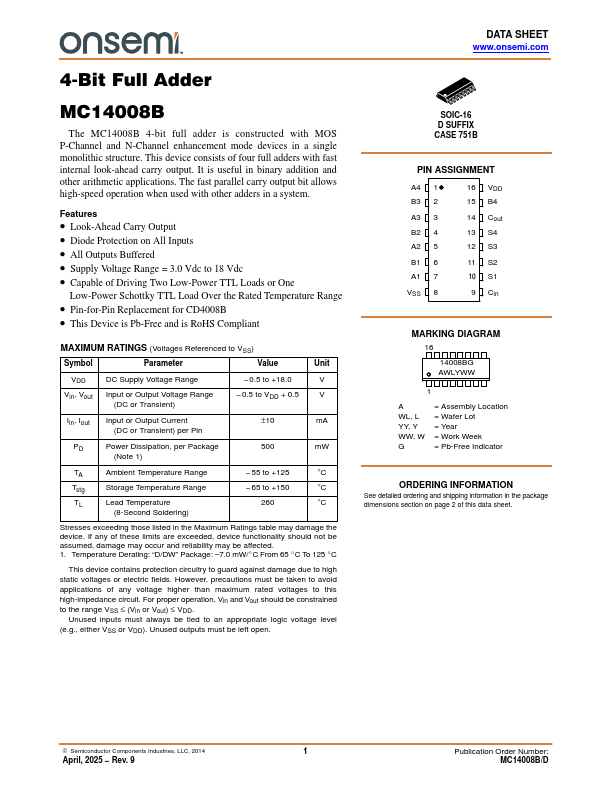

DATA SHEET www.onsemi.com 4-Bit Full Adder MC14008B The MC14008B 4-bit full adder is constructed with MOS P-Channel and N-Channel enhancement mode devices in a single monolithic structure. This device consists of four full adders with fast internal look-ahead carry output. It is useful in binary addition and other arithmetic applications. The fast parallel carry output bit allows high-speed operation when used with other adders in a system. Features • Look-Ahead Carry Output • Diode Protection on All Inputs • All Outputs Buffered • Supply Voltage Range = 3.
