MC14007UB - Dual Complementary Pair Plus Inverter

Datasheet Summary

Features

  • Diode Protection on All Inputs.
  • Supply Voltage Range = 3.0 Vdc to 18 Vdc.
  • Capable of Driving Two Low.
  • power TTL Loads or One Low.
  • power Schottky TTL Load Over the Rated Temperature Range.
  • Pin.
  • for.
  • Pin Replacement for CD4007A or CD4007UB.
  • This device has 2 outputs without ESD Protection. Antistatic precautions must be taken.
  • NLV Prefix for Automotive and Other.

📥 Download Datasheet

Datasheet preview – MC14007UB

Datasheet Details

Part number MC14007UB
Manufacturer ON Semiconductor
File Size 205.68 KB
Description Dual Complementary Pair Plus Inverter
Datasheet download datasheet MC14007UB Datasheet
Additional preview pages of the MC14007UB datasheet.

📁 Similar Datasheet

  • MC14007UB - Dual Complementary Pair Plus Inverter (Motorola)
  • MC14007N - MC14005N LED (ETC)
  • MC1400 - (MC1500 / MC1400) Laser Trimmed Silicon Monolithic Integrated Circuit (Motorola)
  • MC14000UB - Dual 3-Input NOR Gate Plus Inverter (Motorola)
  • MC14001B - B-Suffix Series CMOS Gates (Motorola)
  • MC14001UB - Dual 3-Input NOR Gate Plus Inverter (Motorola)
  • MC14002B - B-Suffix Series CMOS Gates (Motorola)
  • MC14002UB - Dual 3-Input NOR Gate Plus Inverter (Motorola)
  • MC14005N - MC14005N LED (ETC)
  • MC14006B - 18-Bit Static Shift Register (Motorola)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

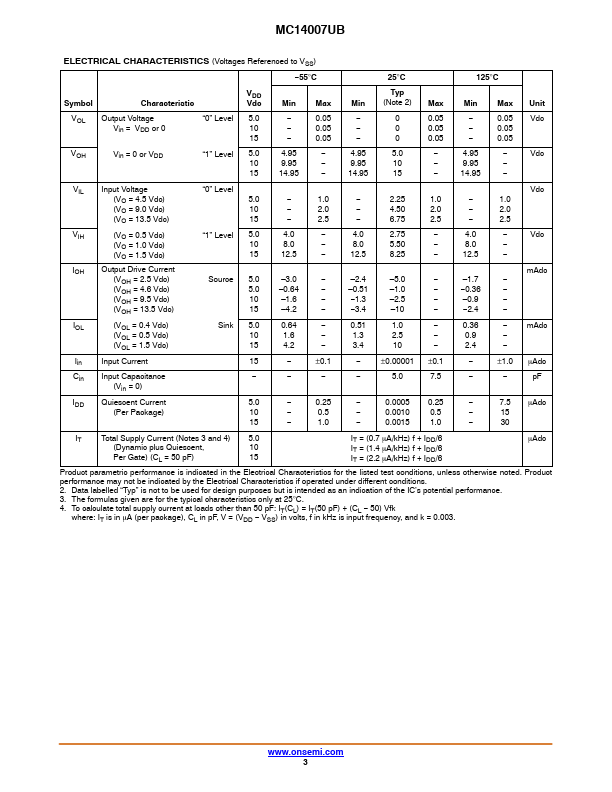

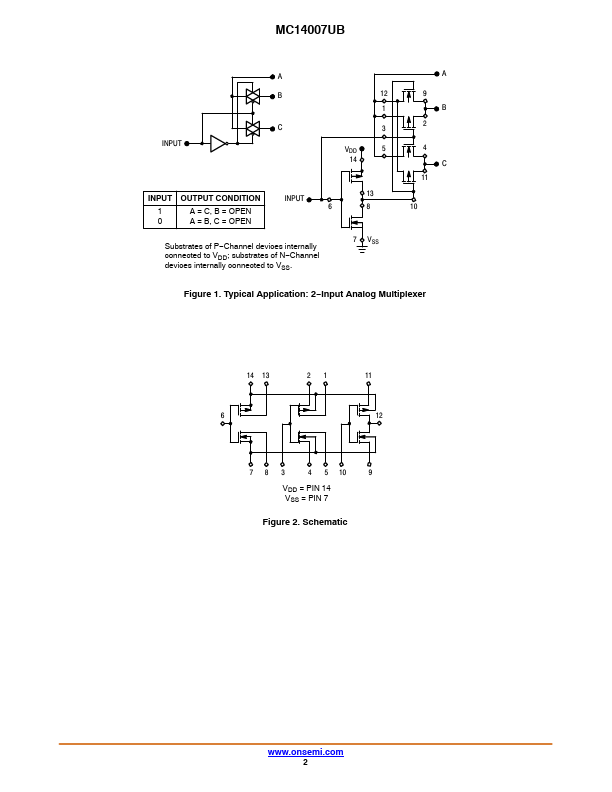

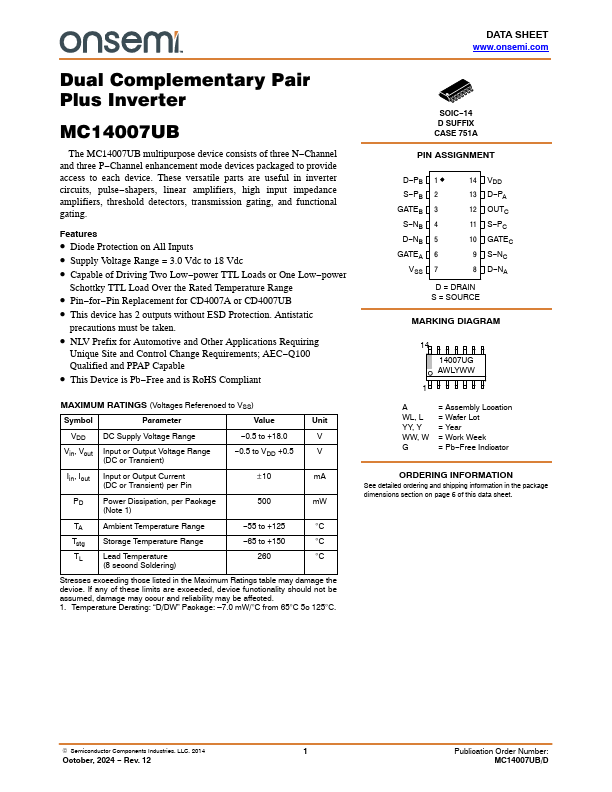

DATA SHEET www.onsemi.com Dual Complementary Pair Plus Inverter MC14007UB The MC14007UB multipurpose device consists of three N−Channel and three P−Channel enhancement mode devices packaged to provide access to each device. These versatile parts are useful in inverter circuits, pulse−shapers, linear amplifiers, high input impedance amplifiers, threshold detectors, transmission gating, and functional gating. Features • Diode Protection on All Inputs • Supply Voltage Range = 3.0 Vdc to 18 Vdc • Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range • Pin−for−Pin Replacement for CD4007A or CD4007UB • This device has 2 outputs without ESD Protection. Antistatic precautions must be taken.
