MC146805G2 - 8-BIT MICROPROCESSOR

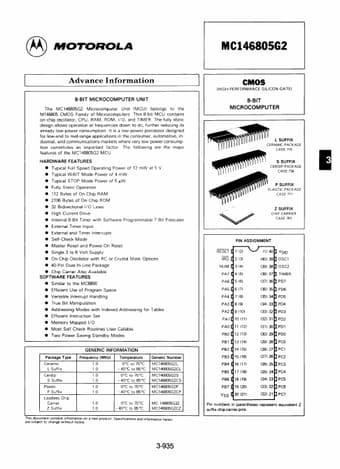

® MOTOROLA MC146805G2 Advance Information 8-BIT MICROCOMPUTER UNIT The MC146805G2 Microcomputer Unit (MCU) belongs to the M146805 CMOS Family of Microcomputers. This 8-bit MCU contains on-chip oscillator, CPU, RAM, ROM, I/O, and TIMER. The fully static design allows operation at frequencies down to dc, further reducing its already low-power consumption. It is a low-power processor designed for low-end to mid-range applications in the consumer, automotive, industrial, and communications market.

MC146805G2 Features

* of the MC146805G2 MCU. HARDWARE FEATURES

* Typical Full Speed Operating Power of 12 mW at 5 V

* Typical WAIT Mode Power of 4 mW

* Typical STOP Mode Power of 5 p.W

* Fully Static Operation

* 112 Bytes of On-Chip RAM

* 2106 Bytes of On-Chip ROM
