MC33887

5.0 A H-Bridge with Load Current Feedback

MC33887 Features

* 5.0 V to 40 V Continuous Operation 120 mΩ RDS(ON) H-Bridge MOSFETs TTL/CMOS Compatible Inputs PWM Frequencies up to 10 kHz Active Current Limiting (Regulation) Output Short Circuit Protection (Short to V+ or Sh

MC33887 General Description

of each terminal can be found in the Functional Terminal Description section, page 20. Terminal 1 2 Terminal Name AGND FS Formal Name Analog Ground Fault Status for H-Bridge Definition Low-current analog signal ground. Open drain active LOW Fault Status output requiring a pull-up resistor to 5.0 V. .

MC33887 Datasheet (890.66 KB)

Preview of MC33887 PDF

Datasheet Details

Part number:

MC33887

Manufacturer:

Motorola

File Size:

890.66 KB

Description:

5.0 a h-bridge with load current feedback.

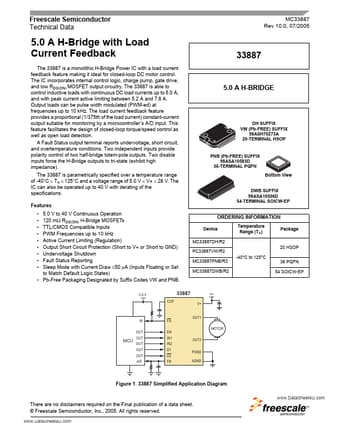

Freescale Semiconductor Technical Data MC33887 Rev 10.0, 07/2005 5.0 A H-Bridge with Load Current Feedback The 33887 is a monolithic H-Bridge Power .
