MC74F125 Datasheet (131.39 KB)
MC74F125
Motorola
131.39 KB
(mc74f125 / mc74f126) 3-state quad buffers.

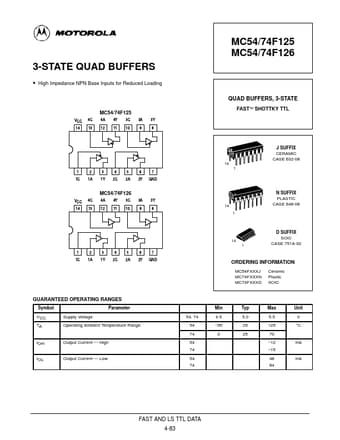

MC54/74F125 MC54/74F126 3-STATE QUAD BUFFERS
* High Impedance NPN Base Inputs for Reduced Loading QUAD BUFFERS, 3-STATE
MC54/74F125
VCC 14 4C .
📁 Related Datasheet
MC74F1245 - OCTAL BIDIRECTIONAL TRANSCEIVER WITH 3-STATE INPUTS/OUTPUTS
(Motorola)
MC74F1245 OCTAL BIDIRECTIONAL TRANSCEIVER WITH 3-STATE INPUTS/OUTPUTS
The MC74F1245 contains eight noninverting bidirectional buffers with 3-state out.
MC74F126 - (MC74F125 / MC74F126) 3-STATE QUAD BUFFERS
(Motorola)
MC54/74F125 MC54/74F126 3-STATE QUAD BUFFERS
• High Impedance NPN Base Inputs for Reduced Loading QUAD BUFFERS, 3-STATE
MC54/74F125
VCC 14 4C 13 4A 12.
