MC74F240 (MC74F240 - MC74F244) OCTAL BUFFER/LINE DRIVER WITH 3-STATE OUTPUTS FAST SCHOTTKY TTL

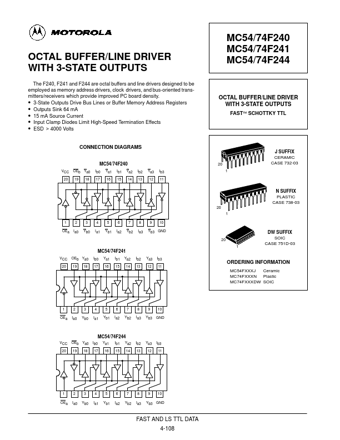

OCTAL BUFFER/LINE DRIVER WITH 3-STATE OUTPUTS The F240, F241 and F244 are octal buffers and line drivers designed to be employed as memory address drivers, clock drivers, and bus-oriented transmitters/receivers which provide improved PC board density. 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers Outputs Sink 64 mA 15 mA Source Current Input Clamp Diodes Limit High-Speed Termination Effects ESD > 4000 Volts MC54/74F240 MC54/.

MC74F240_Motorola.pdf

MC74F240 Datasheet Preview — Preview of MC74F240 PDF

Datasheet Details

Part number:

MC74F240

Manufacturer:

Motorola

File Size:

89.05 KB

Description:

(mc74f240 - mc74f244) octal buffer/line driver with 3-state outputs fast schottky ttl.
