MC74HC03A - Quad 2-Input NAND Gate

MC74HC03A Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad 2-Input NAND Gate With Open-Drain Outputs High *Performance Silicon *Gate CMOS The MC74HC03.

MC74HC03A Applications

* Having the output characteristic curves given in this data sheet, this device can be used as an LED driver or in any other application that only requires a sinking current.
* Output Drive Capability: 10 LSTTL Loads With Suitable Pu

📥 Download Datasheet

Preview of MC74HC03A PDF

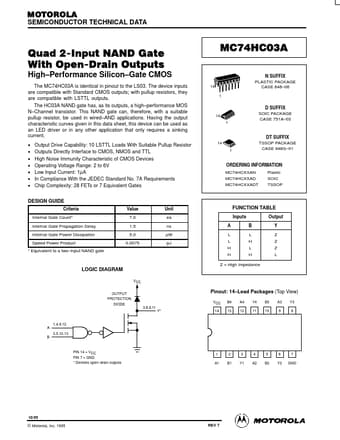

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC74HC03A
Manufacturer
Motorola
File Size
175.64 KB
Datasheet
MC74HC03A_Motorola.pdf
Description
Quad 2-Input NAND Gate
