MC74LVX02 Datasheet - Motorola

MC74LVX02 LOW-VOLTAGE CMOS

www.DataSheet4U.com MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad 2-Input NOR Gate With 5V-Tolerant Inputs The MC74LVX02 is an advanced high speed CMOS 2 input NOR gate. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems. MC74LVX02 High Speed: tPD = 4.5ns (Typ) at VCC = 3.3V Low Power Dissipation: ICC = 2µA (Max) at TA = 25°C Power Down Protection Provided on Inputs B.

MC74LVX02 Datasheet (222.92 KB)

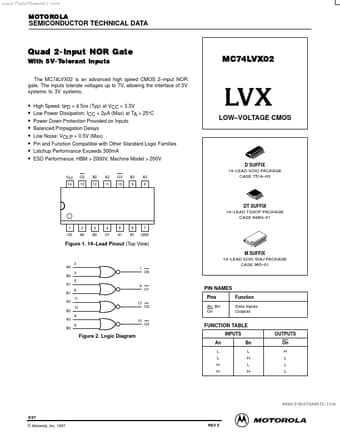

Preview of MC74LVX02 PDF
MC74LVX02 Datasheet Preview Page 2 MC74LVX02 Datasheet Preview Page 3

Datasheet Details

Part number:

MC74LVX02

Manufacturer:

Motorola

File Size:

222.92 KB

Description:

Low-voltage cmos.
