MC74LVX125

Quad Bus Buffer

MC74LVX125 Features

* High Speed: tPD = 4.4 ns (Typ) at VCC = 3.3 V

* Low Power Dissipation: ICC = 4 mA (Max) at TA = 25°C

* Power Down Protection Provided on Inputs

* Balanced Propagation Delays

* Low Noise: VOLP = 0.5 V (Max)

* Pin and Function Compatible with Other Sta

MC74LVX125 Datasheet (95.95 KB)

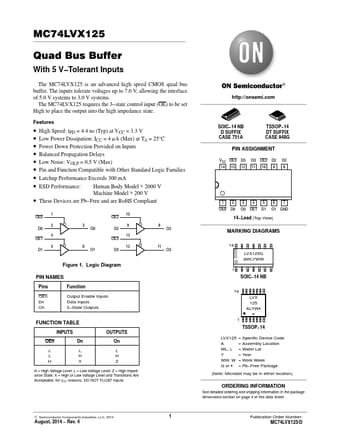

Preview of MC74LVX125 PDF

Datasheet Details

Part number:

MC74LVX125

Manufacturer:

ON Semiconductor ↗

File Size:

95.95 KB

Description:

Quad bus buffer.
MC74LVX125 Quad Bus Buffer With 5 V

*Tolerant Inputs The MC74LVX125 is an advanced high speed CMOS quad bus buffer. The inputs tolerate volta.
