MC74LVX138 Datasheet - Motorola

MC74LVX138 LOW-VOLTAGE CMOS

www.DataSheet4U.com MOTOROLA SEMICONDUCTOR TECHNICAL DATA 3-to-8 Line Decoder With 5V-Tolerant Inputs The MC74LVX138 is an advanced high speed CMOS 3 to 8 line decoder. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems. When the device is enabled, three Binary Select inputs (A0 A2) determine which one of the outputs (O0 O7) will go Low. When enable input E3 is held Low or either E2 or E1 is held High, decoding functio.

MC74LVX138_Motorola.pdf

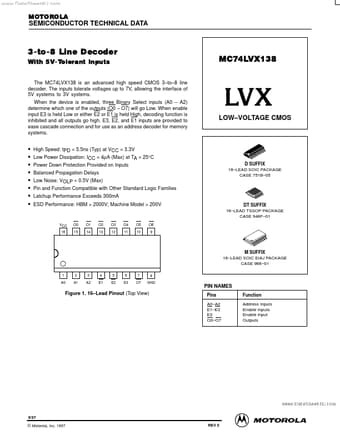

Preview of MC74LVX138 PDF
MC74LVX138 Datasheet Preview Page 2 MC74LVX138 Datasheet Preview Page 3

Datasheet Details

Part number:

MC74LVX138

Manufacturer:

Motorola

File Size:

250.76 KB

Description:

Low-voltage cmos.
