MC7905ACT Datasheet - Motorola

MC7905ACT 3-Terminal Negative Voltage Regulator

Three-Terminal Negative Voltage Regulators The MC7900 series of fixed output negative voltage regulators are intended as complements to the popular MC7800 series devices. These negative regulators are available in the same seven voltage options as the MC7800 devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the negative MC7900 series. Available in fixed output voltage options from 5.0 V to 24 V, these regulators empl.

MC7905ACT Datasheet (128.08 KB)

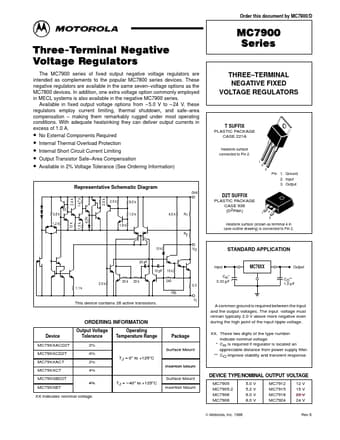

Preview of MC7905ACT PDF
MC7905ACT Datasheet Preview Page 2 MC7905ACT Datasheet Preview Page 3

Datasheet Details

Part number:

MC7905ACT

Manufacturer:

Motorola

File Size:

128.08 KB

Description:

3-terminal negative voltage regulator.
